OEM#: 211150-1-NDNew OEM Original Outright
CONNECTOR, HOUSING, FEMALE SOCKET, BLACK, 600 V, 25 POLES, 55 TO 130 DEG C, MEETS UL by Approved Vendor
Your price:
$13.64 each
OEM#: 211150-1-NDCONNECTOR, HOUSING, FEMALE SOCKET, BLACK, 600 V, 25 POLES, 55 TO 130 DEG C, MEETS UL by Approved Vendor
New OEM Original Outright
Your price:
$13.64 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

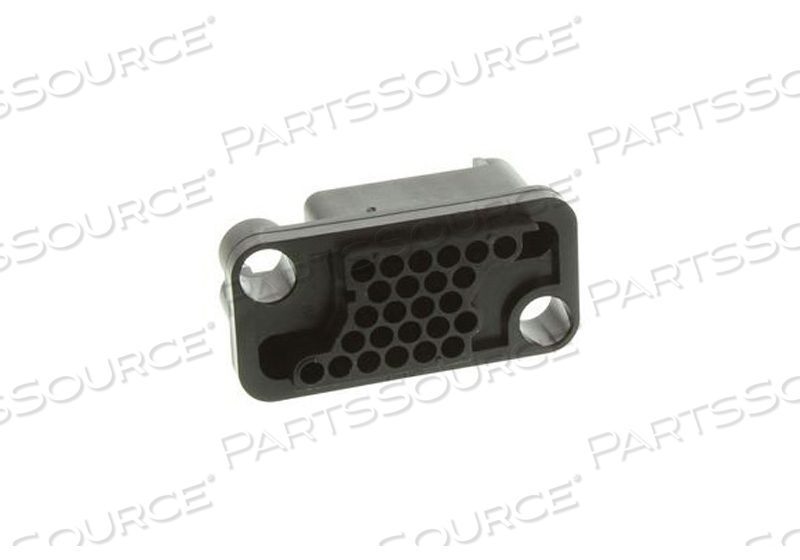

The 211150-1 is a 25-position 5-row black Plug Housing and made of polyester and is used with Metrimate drawer connectors. The AMP Metrimate connector designed to meet IEC requirement and offer improvements in durability, density and electrical performance.
- UL94V-0 Flammability rating
- 600V Operating voltage
- -55 to +130°C Temperature range
Technical Specs
P/N: 211150-1-ND Key Specs
Item
CONNECTOR, HOUSING, FEMALE SOCKET, BLACK, 600 V, 25 POLES, 55 TO 130 DEG C, MEETS UL
OEM
Approved Vendor
OEM #
211150-1-ND
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Circuit Application
Power and Signal
Color
Black
Connector Height
38.1mm
Connector Style
Drawer
Connector System
Wire-to-Board, Wire-to-Panel, Wire-to-Wire
Connector Type
Housing for Female Sockets
Connector Usage
Plug
Contact Type
Socket
Current Rating
13A
Length
62.53mm
Material
Polyester
Mounting Type
Panel
Number of Positions
25
Number of Rows
5
Operating Temperature
-55 to 130˚C
Operating Voltage
600VAC
Pixel/Pitch Size
0.2in
Recommended Panel Thickness
0.8 to 2.3mm
Row-to-Row Spacing
4.39mm
Sealable
No
Series
Metrimate
Standards
CSA, UL, VDE, UL E28476, UL 94V-0, RoHS
Type
Rectangular
Wire Type
Stranded
With
With Guide Pin
The 211150-1 is a 25-position 5-row black Plug Housing and made of polyester and is used with Metrimate drawer connectors. The AMP Metrimate connector designed to meet IEC requirement and offer improvements in durability, density and electrical performance.
- UL94V-0 Flammability rating
- 600V Operating voltage
- -55 to +130°C Temperature range
